AR9500SD

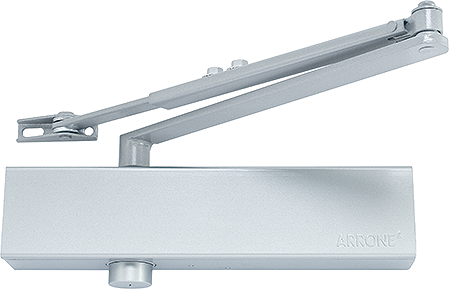

ARRONE overhead door closer:

• Power size: 2 to 6 adjustable by spring tension
• Function: Closing speed, latching speed, back check
• Cover: Slide cover
• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Maximum door width: 1400 mm (Fig 1 & Fig 61), 1100 mm (Fig 6)
• Maximum door weight: 120 kg (Fig 1 & Fig 61), 100 kg (Fig 6)
• Testing: BS EN 1154:1997
  Door mount pull (Fig 1): 4 | 8 | 6/2 | 1* | 1 | 3
  Door mount push (Fig 6): 3 | 8 | 5/2 | 1* | 1 | 3
  Transom mount (Fig 61): 4 | 8 | 6/2 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on up to 240 minute Steel un-insulated fire doors.
• CE Marked: AD5473, UKCA Marked: AD7693
