are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Tilt and Slide Handles for Patio Doors
Paris

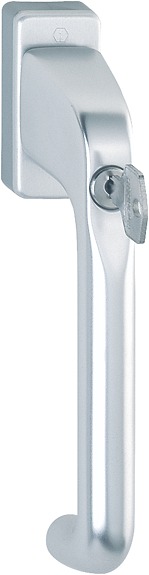

HOPPE aluminium lockable tilt/slide handle with Secu200® for patio doors
Model: PSK-037S/U11Z 200NM
Item number: 823536
Finish: F1 aluminium silver effect
HOPPE aluminium lockable tilt/slide handle with Secu200® for patio doors:
- Tested to DIN EN 13126-3: 23/180-0133/33/C1 and RAL-GZ 607/9, RAL200; meets the requirements of DIN EN 1627-1630 RC1-6
- Locking mechanism: turn cylinder, reversible key
- Stop-in position: 90°
- Cover: partial cover cap
- Base: zamak, supporting lugs
- Spindle: HOPPE solid spindle
- Fixing: concealed, for M5 thread screws
Product type
Lockable handle with for tilt/slide doors
Rose shape
Rosette shape angular (rectangular)
Version
Secu200®
Finish
F1 aluminium silver effect
Grade
2
Locking mechanism
turn cylinder 4W1323
Commodity Class
aluminium
Diameter lug
10 mm
Stop position in °
90°
Spindle length
32 mm
Spindle size
7 mm
Product data sheet
Product photo
Technical drawing
HOPPE Sarah replaces a window handle
By loading the video, you accept YouTube's privacy policy.
Learn more
HOPPE corporate film
By loading the video, you accept YouTube's privacy policy.
Learn more

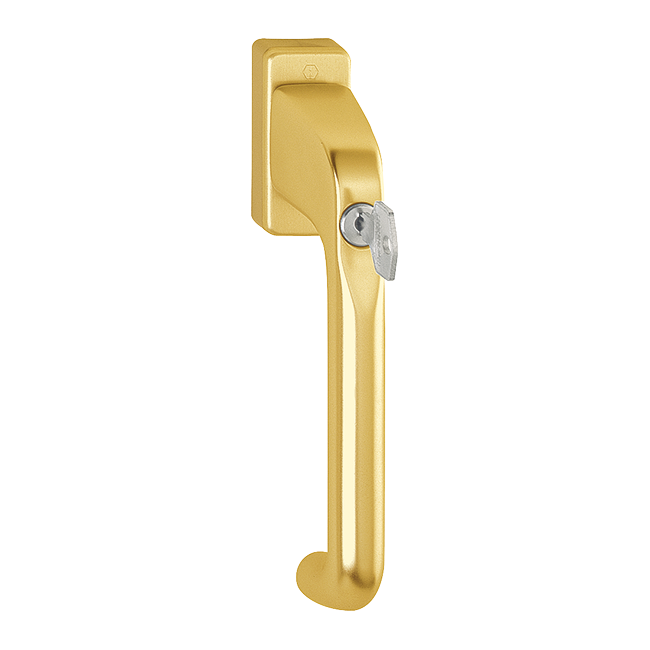

F3 aluminium gold effect

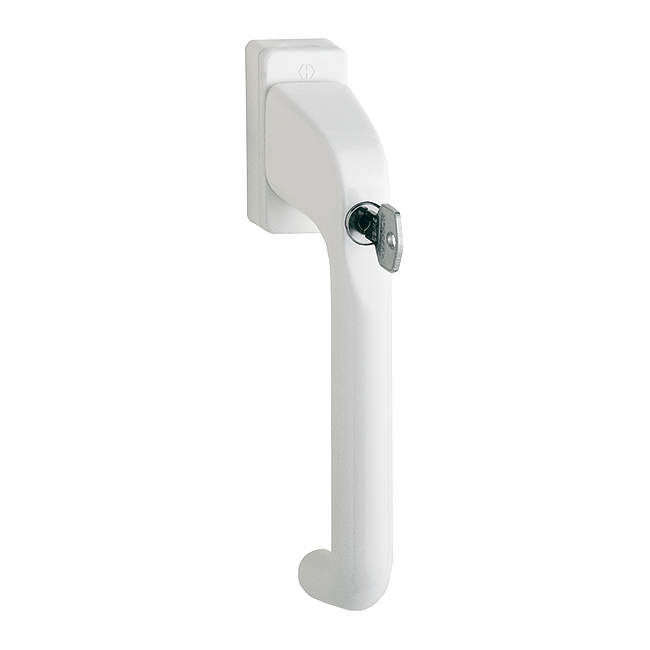

F9010 pure white
F9016 traffic white (diamond white)
