Lift and Slide Handle Sets for Patio Doors
Tôkyô
HOPPE aluminium lift/slide handle set for patio doors
Model: HS-571/431N-AS
Item number: 11639593
Finish: F1 aluminium silver effect
HOPPE aluminium lift/slide handle set for patio doors:
- Bearing: fixed/movable handles
- Stop-in position: 180°
- Cover: full cover cap
- Base: zamak, supporting lugs
- Spindle: loose HOPPE solid spindle with radiused edges
- Fixing: concealed, bolt-through, M6 thread screws
Product type
Llift/slide handle set for patio doors
Version
standard
Rose shape
Round rose (rounded)
Commodity Class
aluminium
Finish
F1 aluminium silver effect
(Key)Hole size
Euro profile cylinder
Key hole distance
69 mm
Door thickness
75-80 mm
Spindle size
10 mm
Stop position in °
180°
Spindle size
10 mm
Base material
zamak
F1 aluminium silver effect

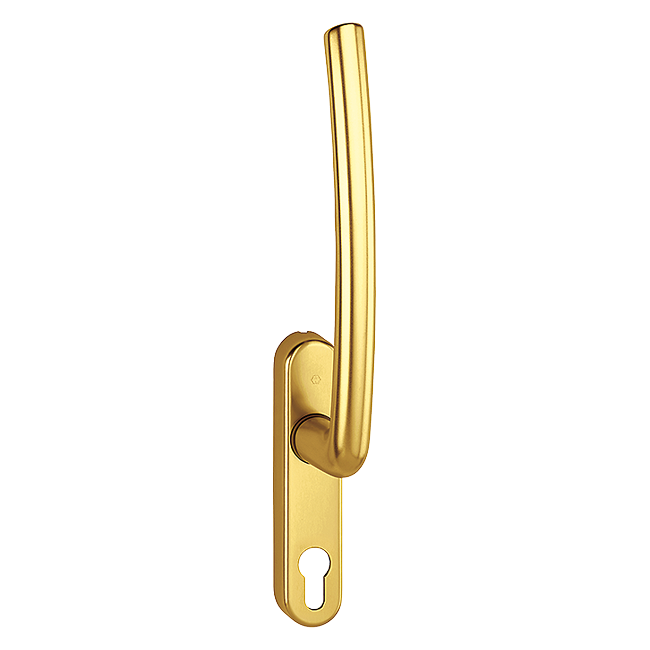

F3 aluminium gold effect

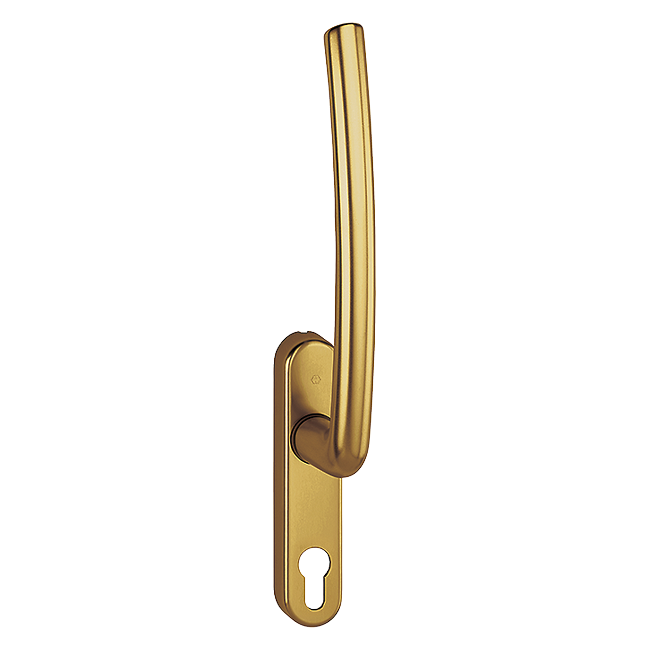

F4 aluminium bronze effect

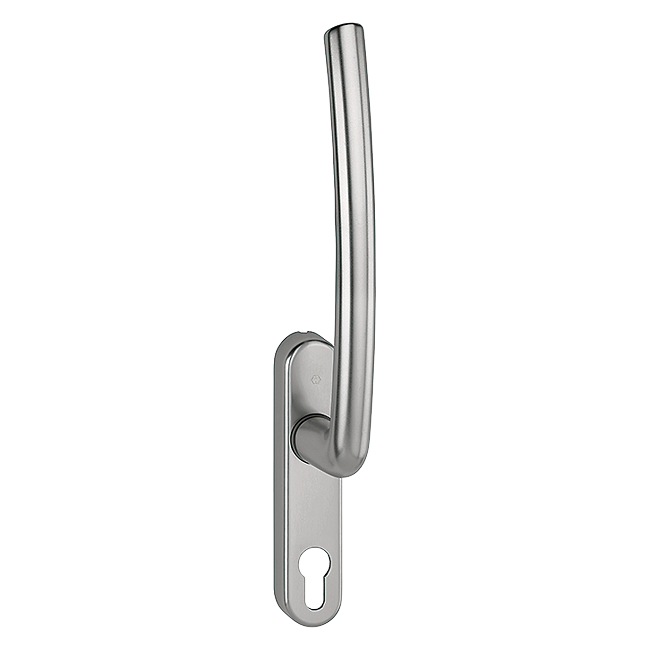

F9 aluminium steel effect

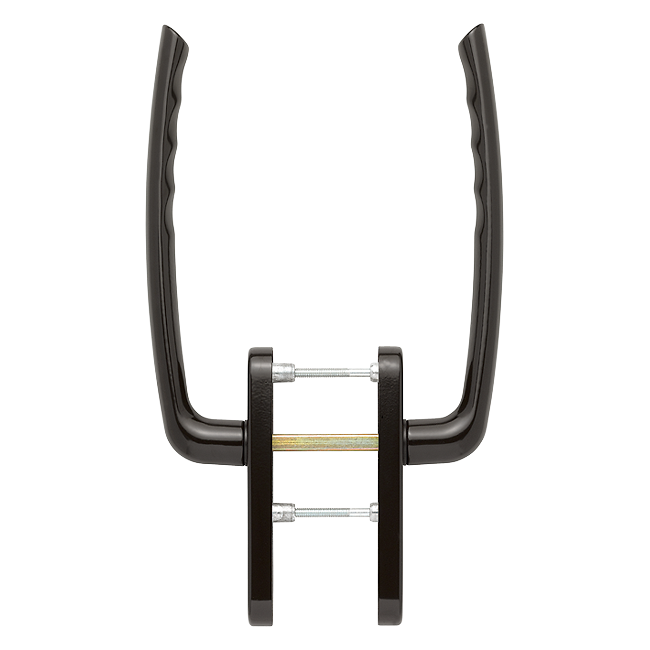

F8707 dark brown

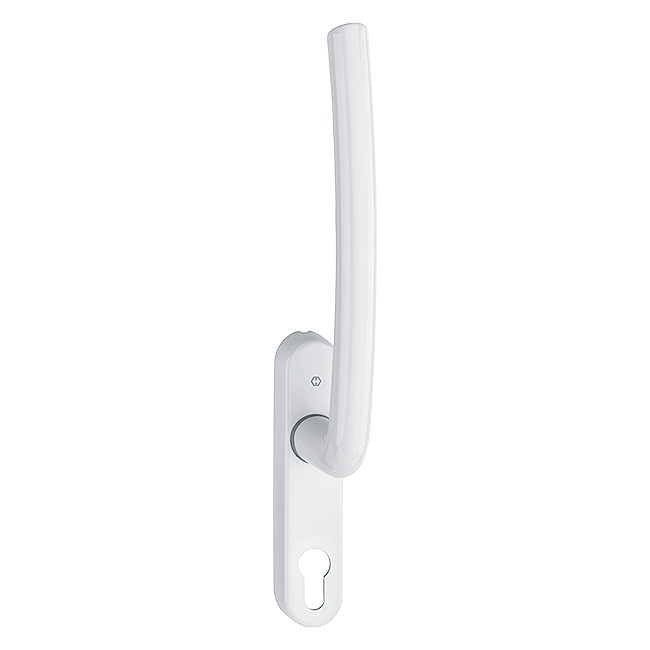

F9016 traffic white (diamond white)
F9714M matt black
