Handle Sets for Profile Doors
Avignon
HOPPE aluminium handle set on narrow backplate for profile doors
Model: 1558/2830N
Item number: 10707966

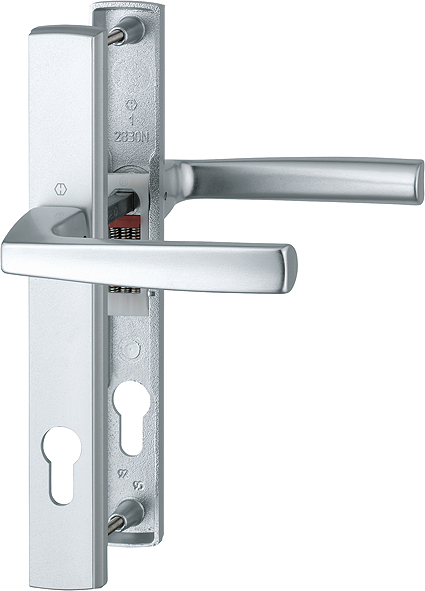

Finish: F1-11 aluminium polished/matt silver effect
HOPPE aluminium handle set on narrow backplate for profile doors:
- Tested to DIN EN 1906: 26-0040A
- Bearing: loose door handles, spring cassettes, maintenance-free slide bearing
- Connection: HOPPE Quick-Fit connection with HOPPE solid spindle (receiver - receiver components)
- Backplates: with supporting lugs
- Fixing: visible inside, bolt-through, M5 thread screws
EN 1670, grade 4
Product type
Set (handle/handle)
Rose shape
None available
Version
Set on narrow backplate
Finish
F1-11 aluminium polished/matt silver effect
Grade
2
Spindle size
8 mm
Commodity Class
aluminium
(Key)Hole size
Euro profile cylinder
Key hole distance
92 mm
Spindle size
8 mm
Door thickness
65-70 mm

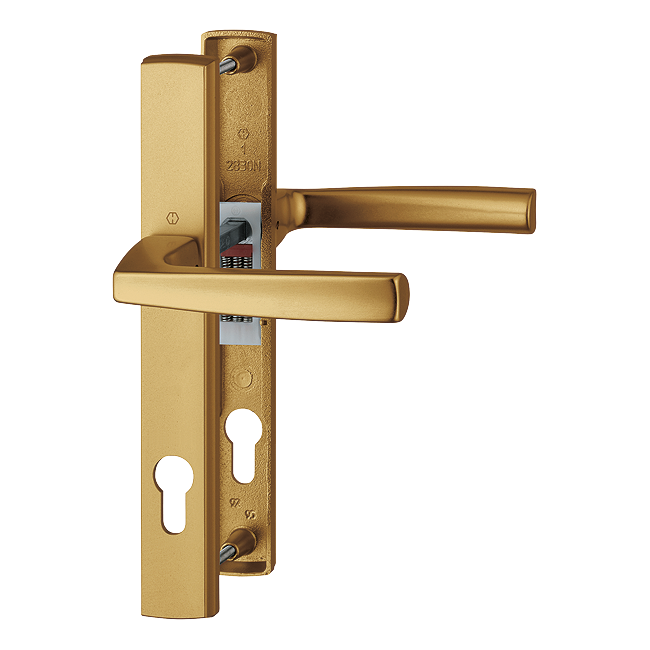

F4-11 aluminium polished/matt bronze effect

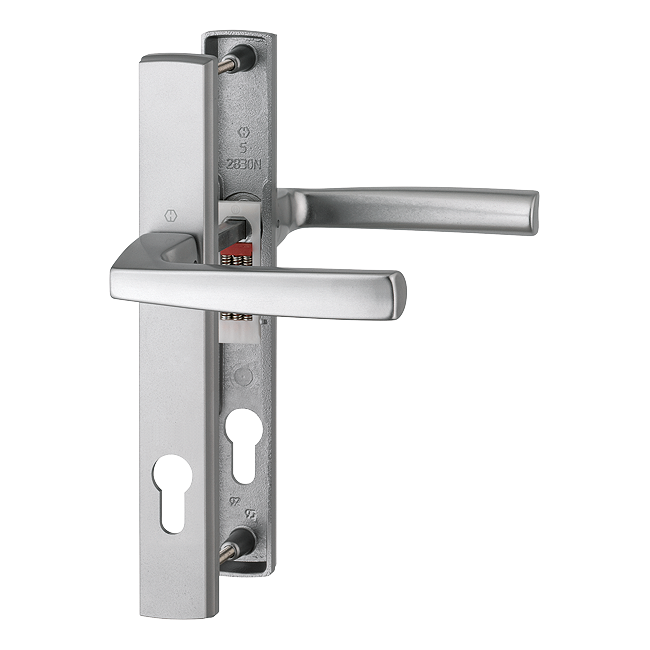

F9-11 aluminium polished/matt steel effect
