Entrance Door Sets

Genova

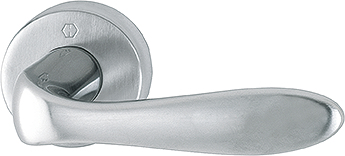

HOPPE brass handle set on rose without escutcheons for entrance doors

Genova

Productline Model: M1535/42FI
Model: M1535/42FI
Item number: 12330395
Finish: F45-R polished/satin chrome - Resista
Price class: E i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE brass handle set on rose without escutcheons for entrance doors:

  • Bearing: loose door handles, non-handed spring cassettes, maintenance-free slide bearing
  • Connection: HOPPE Quick-Fit connection with HOPPE solid spindle (spindle - receiver components)
  • Base: nylon
  • Fixing: concealed, bolt-through, bidirectional, multi-purpose screws

Product type
Set (handle/handle)
Version
Set on rose, without escutcheons
Rose shape
Round rose
Commodity Class
brass
Finish
F45-R polished/satin chrome - Resista
Door thickness
65-75 mm
Spindle size
8 mm
Spindle size
8 mm
Base material
polyamide nylon

Product data sheet

PDF
DOK_DS_12330395_SEN-SE_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,05 MB

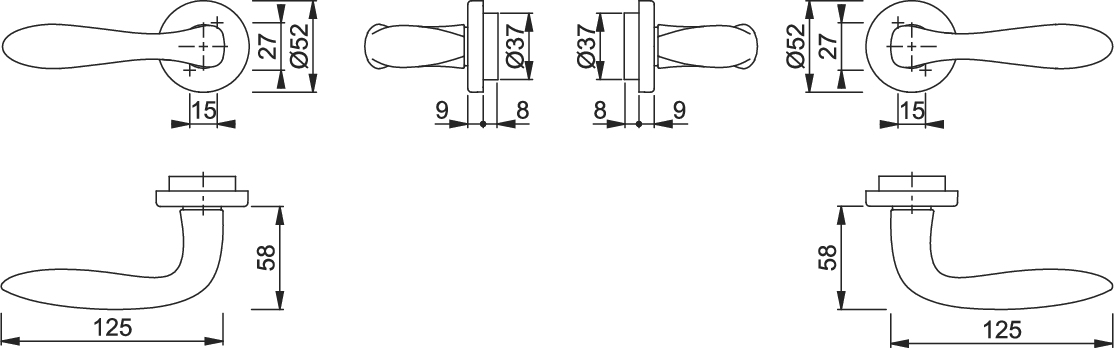

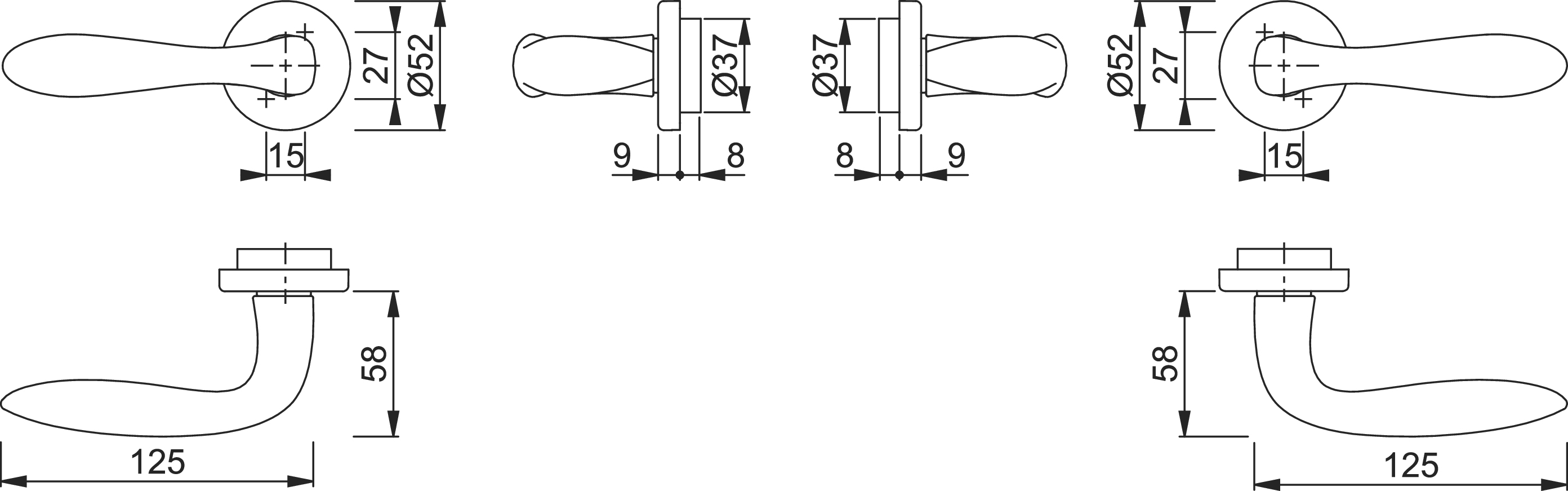

Technical drawing

DWG
DRW_CAT_M1535-42FI_SALL_ACAD_V1.dwg
0,05 MB
JPG
0,06 MB
JPG
0,20 MB
EPS
DRW_CAT_M1535-42FI_SALL_APR_V1.eps
1,03 MB
PDF
DRW_CAT_M1535-42FI_SALL_APRW_V1.pdf
0,22 MB
