are brand-name products, which, in our view, are equivalent to a quality promise. Read through the next few pages to see what distinguishes our branded architectural fittings and the advantages they have to offer.
Concealed bearing hinges
AR8992

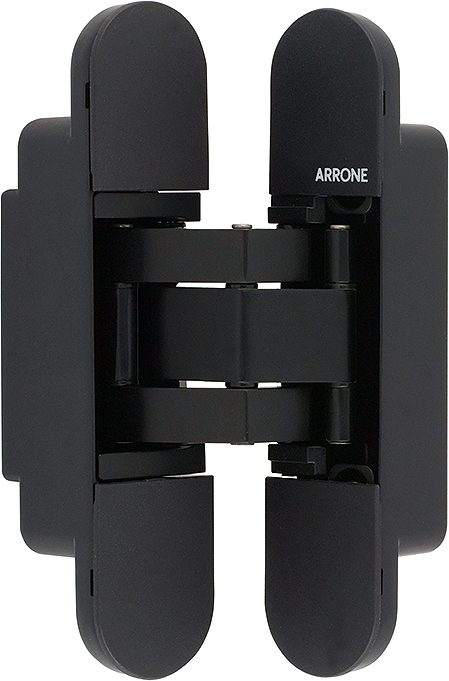

ARRONE concealed hinge
Model: AR8992
Item number: 50025156
Finish: RAL 9005 jet black
ARRONE concealed hinge:
- Material: Zinc Alloy
- Shape: Radius
- Unit of measure (pack size): Sold as a pair
- Door weight: Suitable for doors weighing up to 60 kg with 2 hinges, or 80 kg with 3 hinges
- Fixing: 8 x pozidrive countersunk wood screws
- 3D adjustable: ±3mm lateral adjustment, ±2.5mm height adjustment, ±1mm compression adjustment
Dimensions
130x28 mm
Door thickness
40 mm
Door weight
Maximum door mass 60 kg
Door width
900 mm
Fixings
Timber door
Opening Angle
max. 180° opening
Product type
none
Rose shape
None available
Version
none
Finish
RAL 9005 jet black
Material thickness
6 mm
Commodity Class
Concealed hinge
Door type
wooden door
Silver Enamel

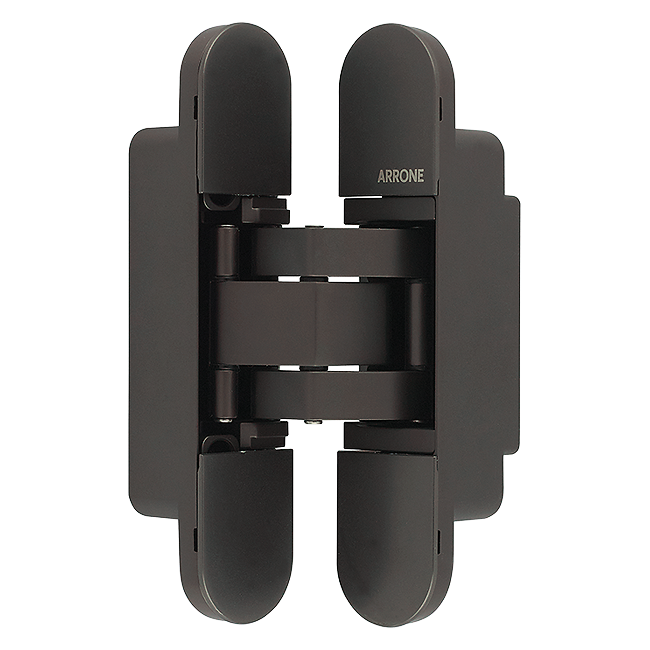

Gun metal grey
