Window Handles

Toulon

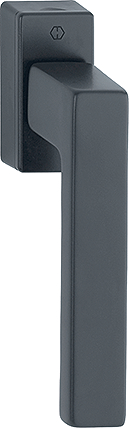

HOPPE aluminium turn/tilt window handle with Secustik and VarioFit

Toulon
View further versions of the series

Productline Model: 0737-2/US947
Model: 0737-2/US947
Item number: 11870540
Finish: F9714M matt black

  Remember and compare   Switch to wishlist   Download product data sheet  Search distributor

HOPPE aluminium turn/tilt window handle with Secustik and VarioFit:

  • Tested to DIN EN 13126-3: H2/180-0-5-0-0-0-C1-2 and RAL-GZ 607/9
  • Stop-in position: 90°
  • Cover: partial cover cap
  • Base: nylon, supporting lugs
  • Spindle: HOPPE solid spindle, adjustable length of 10 mm, smooth adjustment thanks to the pressure spring integrated in the handle neck
  • Fixing: concealed, for M5 thread screws
  • Special feature: built-in basic security
Integrated locking mechanism, Basic security against moving the architectural fitting, Characteristic click sound,
  • Integrated locking mechanism
  • Basic security against moving the architectural fitting
  • Characteristic click sound
Spindle with pressure spring, Fits different window profile depths, Simplified warehousing thanks to fewer variants,
  • Spindle with pressure spring
  • Fits different window profile depths
  • Simplified warehousing thanks to fewer variants
Exceptionally high corrosion resistance grade 5, EN 1670
Exceptionally high corrosion resistance
grade 5, EN 1670
Category of use grade 2 to DIN EN 13126-3
Category of use grade 2 to
DIN EN 13126-3
n_ral607_9_gz607/9

Product type
Turn/tilt window handle
Version
Secustik
Rose shape
Angular rose (rectangular)
Commodity Class
aluminium
Finish
F9714M matt black
Grade
2
Spindle size
7 mm
Spindle length
20-30 mm
Diameter lug
10 mm
Stop position in °
90°
Rose height
13 mm

Product data sheet

PDF
DOK_DS_11870540_SEN-CN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,05 MB

Technical drawing

DWG
DRW_CAT_0737-2-US947_SALL_ACAD_V1.dwg
0,04 MB
JPG
0,02 MB
JPG
0,06 MB
EPS
DRW_CAT_0737-2-US947_SALL_APR_V1.eps
0,97 MB
PDF
DRW_CAT_0737-2-US947_SALL_APRW_V1.pdf
0,17 MB
