Ball Bearing Hinges
AR8180

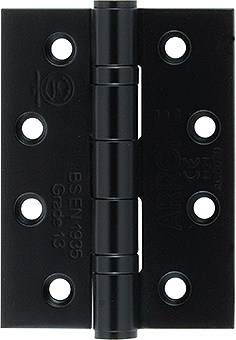

ARRONE ball bearing hinge
Model: AR8180
Item number: 50018851
Finish: RAL 9017 traffic black matt
ARRONE ball bearing hinge:
- Material: stainless steel
- Hinge grade: grade 13
- Shape: square
- Unit of measure (pack size): sold as a pair
- Door weight: suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute on steel fire doors.
- CE Marked: AC0070, UKCA Marked: UK-AC7678
- Certifire approved: CF369, CE DOP: HUK0016, UKCA DOP: HUK0016-UK
grade 4, EN 1670
Material
stainless steel: grade 201 (A1)
Finish
RAL 9017 traffic black matt
Grade
4
Door type
wooden door
Leaf corner
square corners
Drill
4 holes template drilled, countersunk
Fixings
Timber door
Dimension
102x76 mm
Material thickness
3 mm
