Handle sets for profile doors
2900M
HOPPE aluminium narrow backplate for profile doors (exterior side)
Model: 2900M
Item number: 3294690
Finish: F1 aluminium silver effect
Price class: B
Price class
The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.
Price class A: to 20 euro
Price class B: 21 to 40 euro
Price class C: 41 to 60 euro
Price class D: 61 to 80 euro
Price class E: 81 to 100 euro
Price class F: 101 to 130 euro
Price class G: 131 to 160 euro
Price class H: 161 to 190 euro
Price class I: above 191 euro
HOPPE aluminium narrow backplate for profile doors (exterior side):
- Bearing: for loose door handle, maintenance-free slide bearing
- Backplate: supporting lugs
- Fixing: concealed, from inside, for M5 thread screws
Product type
Single parts
Rose shape
None available
Version
Narrow backplate
Finish
F1 aluminium silver effect
Commodity Class
aluminium
(Key)Hole size
oval cylinder
Key hole distance
105 mm
Product data sheet

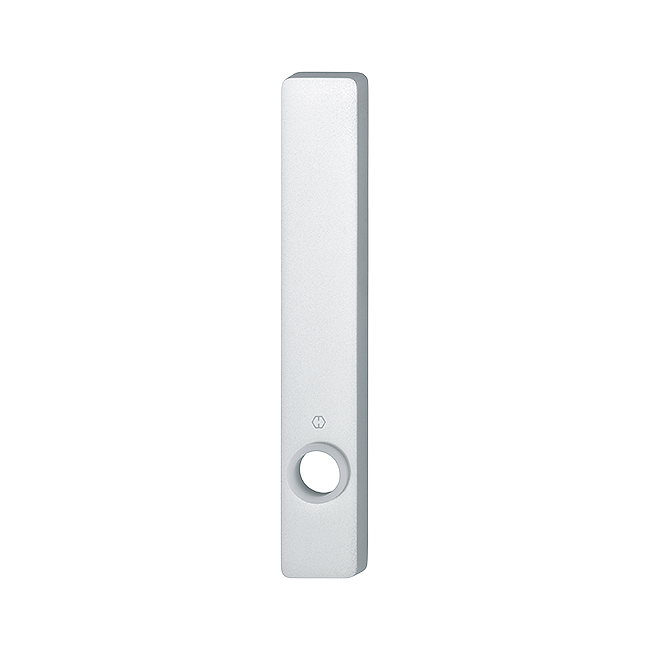

Product photo

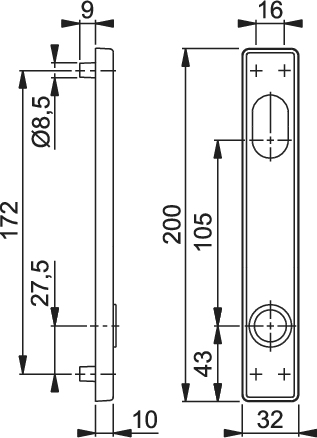

Technical drawing
DWG
DRW_CAT_2900M-10mm-OZ03-105-27,5mm_SALL_ACAD_V1.dwg
0,05 MB
JPG
0,03 MB
JPG
0,11 MB
EPS
DRW_CAT_2900M-10mm-OZ03-105-27,5mm_SALL_APR_V1.eps
0,00 MB
PDF
DRW_CAT_2900M-10mm-OZ03-105-27,5mm_SALL_APRW_V1.pdf
0,13 MB
