Handles for French and Patio Doors

New York

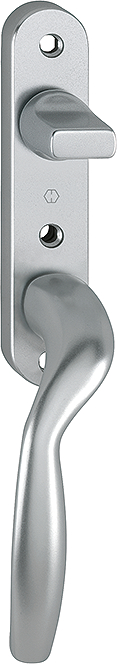

HOPPE cranked aluminium handle half set on backplate with turn for French doors

New York

Productline Model: 0810VK/350KL
Model: 0810VK/350KL
Item number: 3952373
Finish: F9 aluminium steel effect
Price class: B i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE cranked aluminium handle half set on backplate with turn for French doors:

  • Bearing: fixed/movable, maintenance-free slide bearing
  • Stop-in position: 90°
  • Spindle: HOPPE solid spindle, turn with cross spindle
  • Fixing: visible, for multi-purpose screws

Product type
Half-set (cranked handle)
Version
Set on backplate
Commodity Class
aluminium
Finish
F9 aluminium steel effect
(Key)Hole size
turn
Key hole distance
60 mm
Side
left handed
Spindle size
8 mm
Spindle length
60 mm
Stop position in °
90°
Spindle size
8 mm / projecting 60 mm, without notch

Product data sheet

PDF
DOK_DS_3952373_SEN-SE_AOF_V1.pdf
0,24 MB

Product photo

JPG
0,08 MB

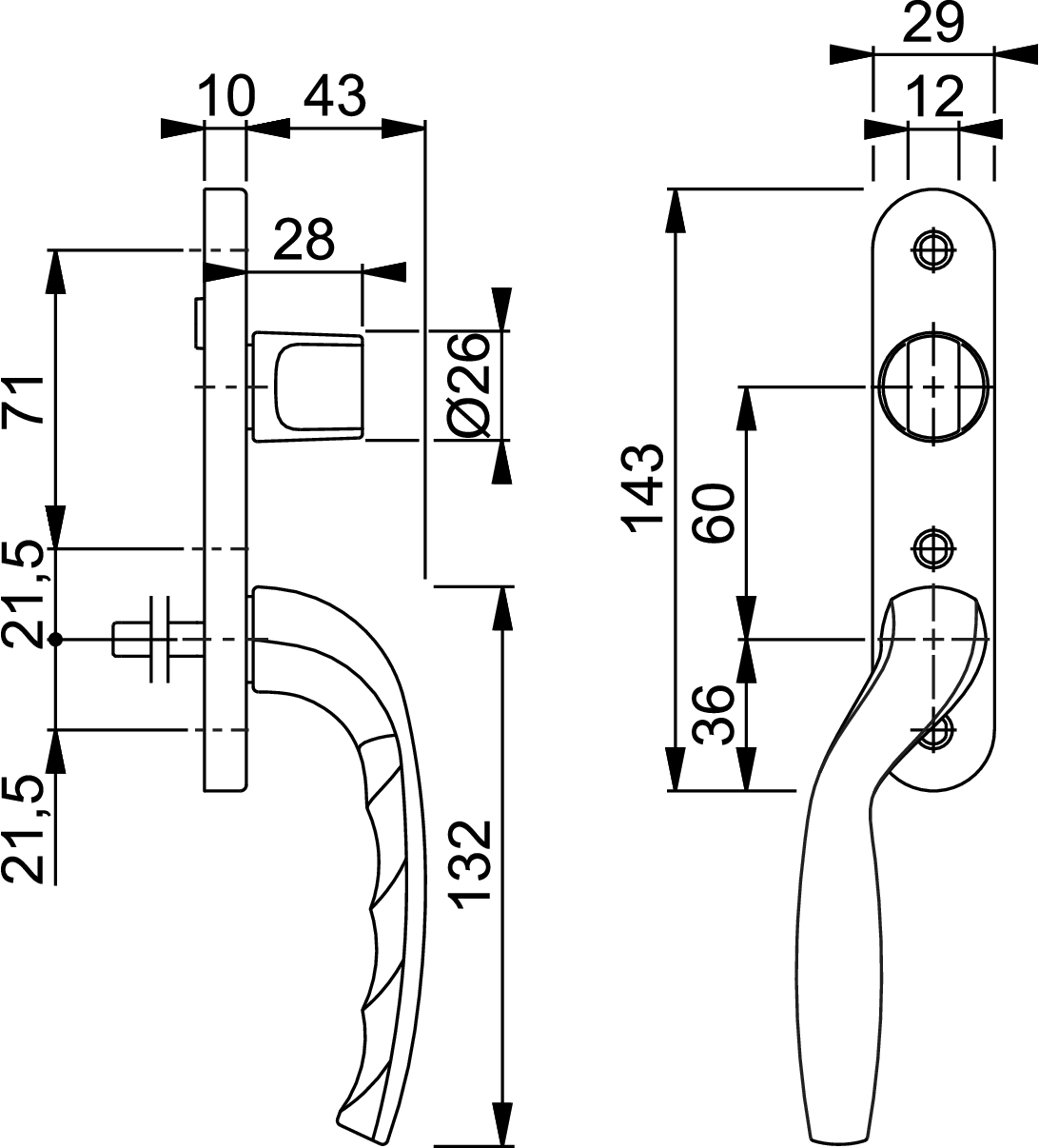

Technical drawing

DWG
DRW_CAT_0810VK-350KL-OL46-60-links_SALL_ACAD_V1.dwg
0,06 MB
JPG
0,05 MB
JPG
0,16 MB
EPS
DRW_CAT_0810VK-350KL-OL46-60-links_SALL_APR_V1.eps
0,34 MB
PDF
DRW_CAT_0810VK-350KL-OL46-60-links_SALL_APRW_V1.pdf
0,15 MB
