Window Handles

London

HOPPE cranked lockable aluminium window handle on narrow rosette

London

Productline Model: 013VK/U955S
Model: 013VK/U955S
Item number: 12248381
Finish: F1 aluminium silver effect
Price class: C i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE cranked lockable aluminium window handle on narrow rosette:

  • Tested to SS 3620:2017 – class A
  • Locking mechanism: push cylinder, reversible key
  • Stop-in position: 90°
  • Cover: partial cover cap
  • Base: zamak, supporting lugs
  • Spindle: HOPPE solid spindle
  • Fixing: concealed, multi-purpose screws
Keyed locking
Keyed locking
n_ss3620_ss3620

Product type
Lockable turn/tilt window handle
Version
Cranked handle
Commodity Class
aluminium
Finish
F1 aluminium silver effect
Side
right handed
Spindle size
7/8 mm
Spindle length
43 mm
Diameter lug
10 mm
Stop position in °
90°
Accessories
with disassembly key
Locking mechanism
1311212

Product data sheet

PDF
DOK_DS_12248381_SEN-SE_AOF_V1.pdf
0,25 MB

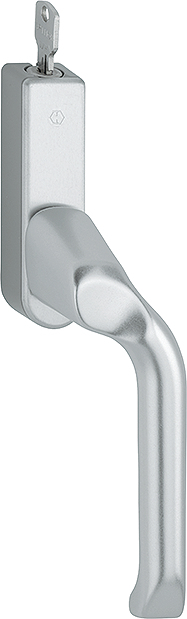

Product photo

JPG
0,06 MB

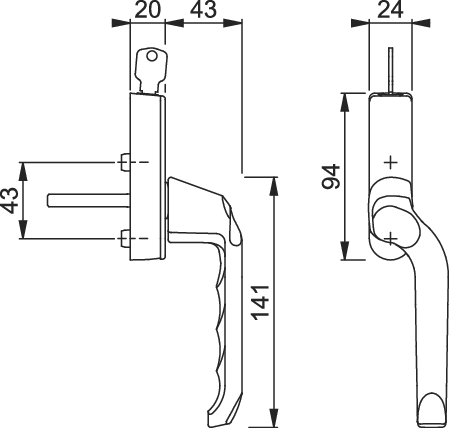

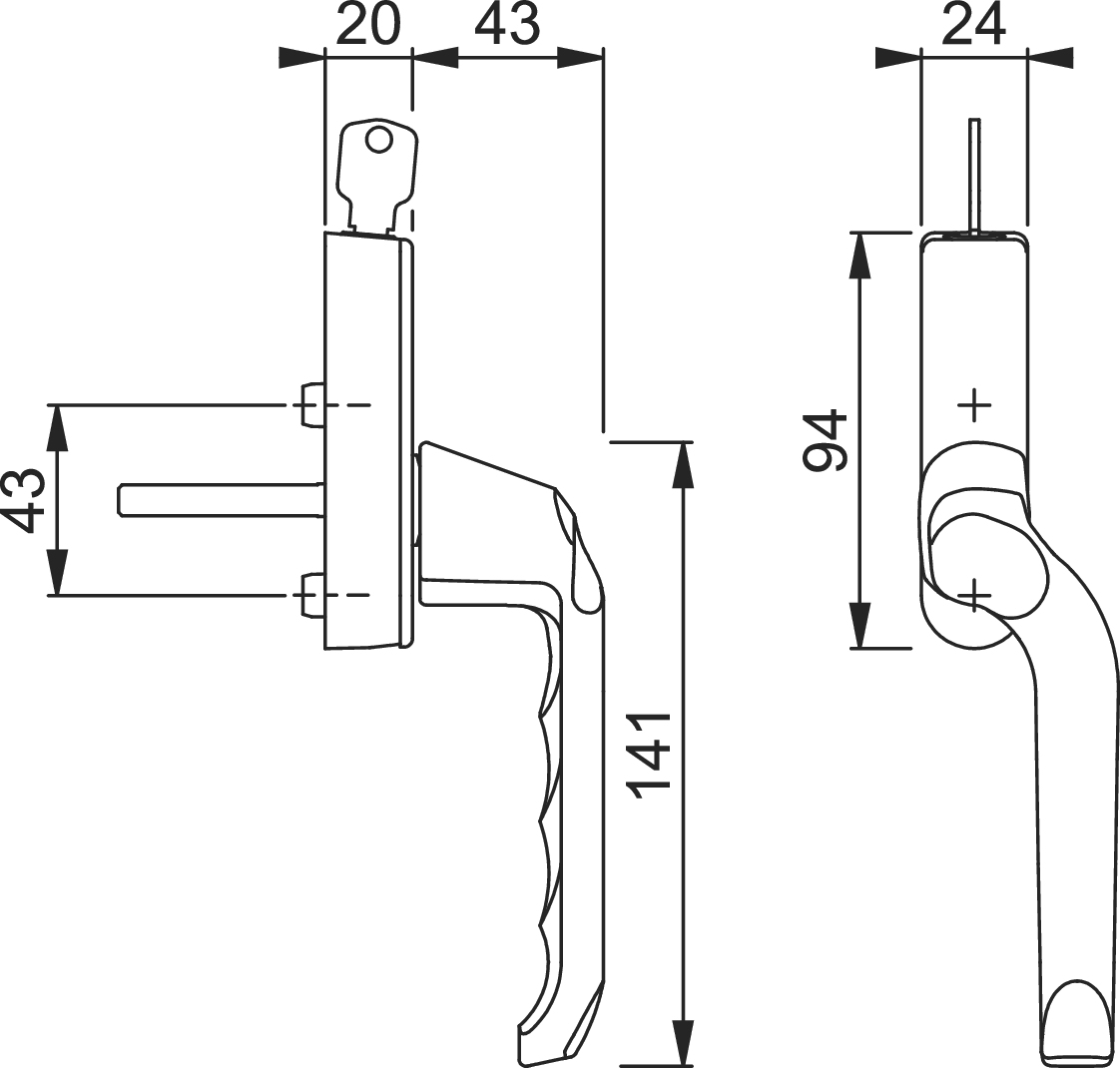

Technical drawing

DWG
DRW_CAT_013VK-U955S-RE_SALL_ACAD_V1.dwg
0,06 MB
JPG
0,03 MB
JPG
0,09 MB
EPS
DRW_CAT_013VK-U955S-RE_SALL_APR_V1.eps
1,02 MB
PDF
DRW_CAT_013VK-U955S-RE_SALL_APRW_V1.pdf
0,19 MB
