Security Handle Sets with Backplate-Rose/Escutcheon Combination

Hamburg

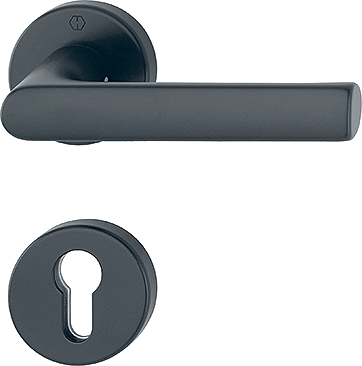

HOPPE aluminium handle half set on rose with escutcheon for entrance doors (interior side)

Hamburg

Productline Model: 1700/42/42S
Model: 1700/42/42S
Item number: 11789445
Finish: F9714M matt black
Price class: C i

Price class

The price classes give an initial orientation about the product you have configured. In specialized or retail shops you will find the final price to be paid.

Price class A: to 20 Euro
Price class B: 21 to 40 Euro
Price class C: 41 to 60 Euro
Price class D: 61 to 80 Euro
Price class E: 81 to 100 Euro
Price class F: 101 to 130 Euro
Price class G: 131 to 160 Euro
Price class H: 161 to 190 Euro
Price class I: above 191 Euro

HOPPE aluminium handle half set on rose with escutcheon for entrance doors (interior side):

  • Bearing: loose door handle, maintenance-free slide bearing
  • Connection: for HOPPE Quick-Fit connection
  • Base: steel, supporting lugs
  • Fixing: concealed, bolt-through, for M5 thread screws
  • Special feature: can be combined with ES1 (SK2) knob (pad) on backplate to form backplate/escutcheon security set

Product type
Door half-set (interior side)
Version
Set on rose
Rose shape
Round rose
Commodity Class
aluminium
Finish
F9714M matt black
(Key)Hole size
Euro profile cylinder
Security grade
for ES1 (SK2)
Spindle size
8 mm
Fixing
bolt-through-fixing
Spindle size
8 mm
Base material
steel
Usage
#

Product data sheet

PDF
DOK_DS_11789445_SEN_AOF_V1.pdf
0,25 MB

Product photo

JPG
0,08 MB

Technical drawing

DWG
DRW_CAT_1700-42-42S-PZ-Kombi-Schutz_SALL_ACAD_V1.dwg
0,09 MB
JPG
0,04 MB
JPG
0,13 MB
EPS
DRW_CAT_1700-42-42S-PZ-Kombi-Schutz_SALL_APR_V1.eps
1,04 MB
PDF
DRW_CAT_1700-42-42S-PZ-Kombi-Schutz_SALL_APRW_V1.pdf
0,19 MB
